Step-by-Step Guide to Electron Configurations for AP Chemistry Success

The arrangement of electrons in atoms — known as the electron configuration — is one of the most important foundations in chemistry. It helps us understand atomic structure, periodic trends, and chemical bonding.

In this article, we’ll explore how electrons fill orbitals, the rules that govern their placement, and how this relates to the structure of the periodic table.

What is Electron Configuration?

Electron configuration describes the distribution of electrons among the various orbitals of an atom. The most stable arrangement, called the ground state, places electrons in the lowest possible energy orbitals. The Pauli exclusion principle tells us that no more than two electrons can occupy the same orbital, and they must have opposite spins.

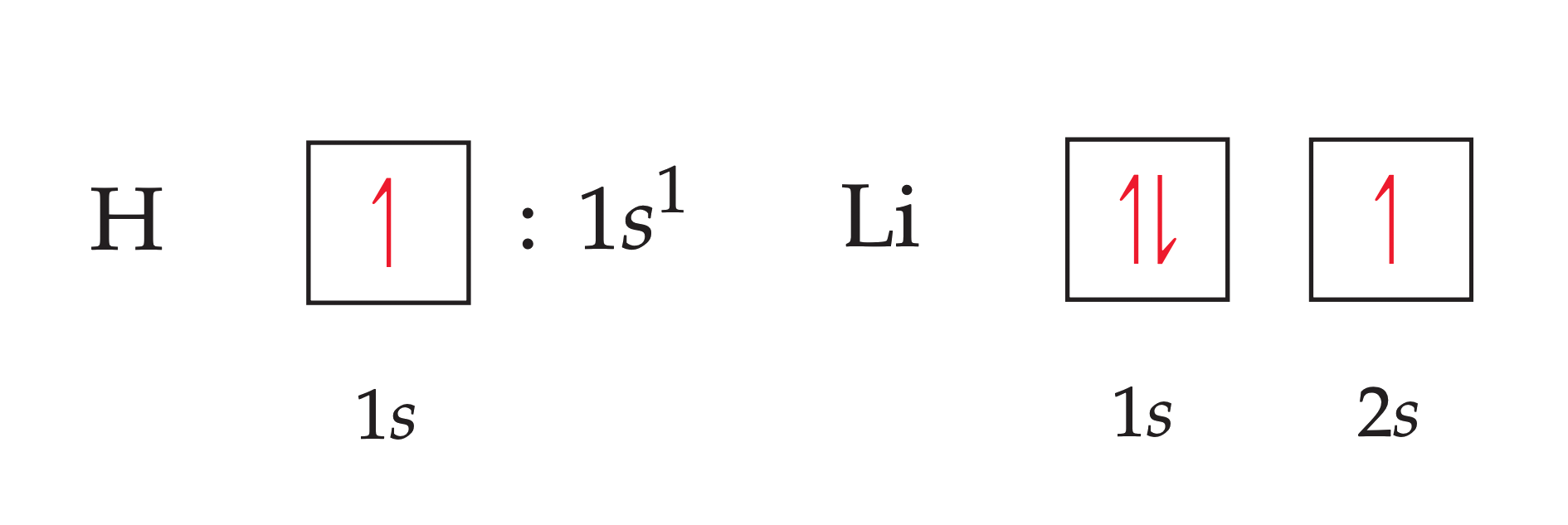

Electrons fill orbitals in order of increasing energy. For example, lithium (atomic number 3) has the configuration $1s^2 2s^1$. This means two electrons fill the $1s$ orbital, and the third electron occupies the $2s$ orbital. We can represent this either with electron configuration notation or with an orbital diagram using boxes and arrows to show spins.

The Pauli Exclusion Principle

A cornerstone of electron configuration is the Pauli Exclusion Principle, which states that no two electrons in an atom or molecule can have the same four quantum numbers.

Because each orbital can hold at most two electrons, they must differ in spin: if one is spin-up ($m_s = +\frac{1}{2}$), the other must be spin-down ($m_s = -\frac{1}{2}$).

Electrons in the same orbital share the first three quantum numbers ($n,\, l,\, m_l$). The only way to avoid identical sets is to have opposite spins. For instance:

If the $1s$ orbital has one electron, the configuration is written $1s^1$ (like hydrogen).
If the $1s$ orbital is filled, it contains two electrons with opposite spins, $1s^2$ (like helium).

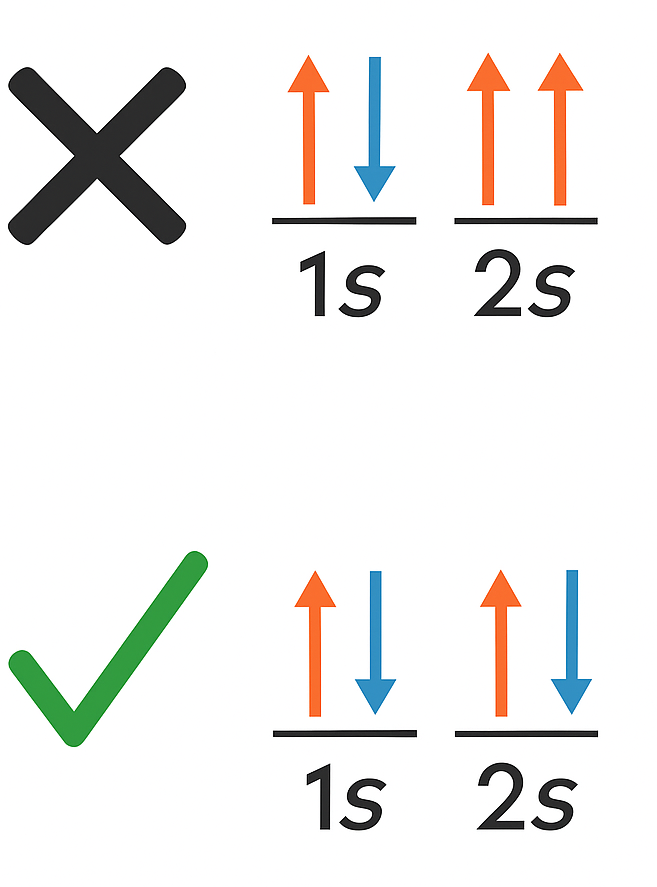

A violation would occur if both electrons in the same orbital had the same spin, since that would give them identical $(n,\, l,\, m_l,\, m_s)$ values.

As shown in the orbital diagrams above, the $1s$ and $2s$ orbitals can hold only two electrons each, and they must be paired with opposite spins.

This principle is why electron configurations build up the way they do and why no orbital can contain more than two electrons.

Orbital Diagrams and Spin

In orbital diagrams, each orbital is drawn as a box, and electrons are shown as half-arrows.

A half-arrow pointing up ($m_s = +\frac{1}{2}$) represents an electron with positive spin, while a half-arrow pointing down ($m_s = -\frac{1}{2}$) represents negative spin.

Two electrons in the same orbital with opposite spins are called paired electrons. Electrons without a partner are called unpaired electrons.

Hund’s Rule

Hund’s rule governs how electrons fill orbitals of the same energy (called degenerate orbitals). It states that the lowest energy arrangement occurs when electrons occupy separate orbitals with parallel spins before pairing up. For example, in carbon ($1s^2 2s^2 2p^2$), the two $2p$ electrons go into separate orbitals with the same spin. This minimizes electron–electron repulsion and stabilizes the atom.

Examples of Electron Configurations

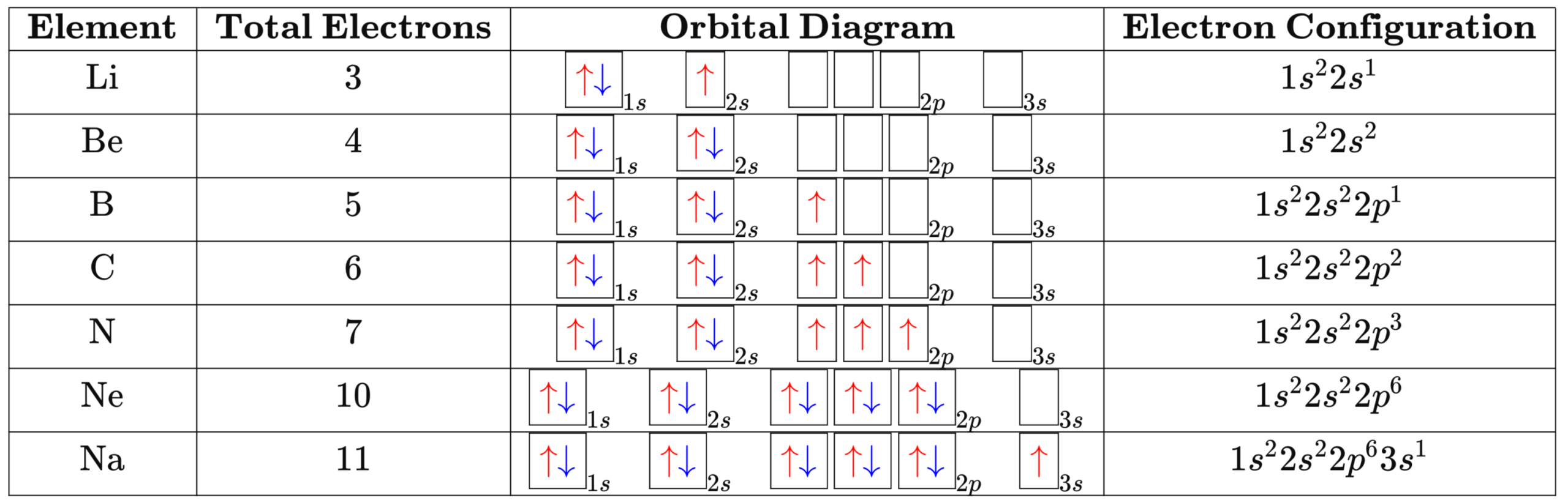

Here are some examples for lighter elements:

Hydrogen (H): $1s^1$
Helium (He): $1s^2$
Lithium (Li): $1s^2 2s^1$
Beryllium (Be): $1s^2 2s^2$
Boron (B): $1s^2 2s^2 2p^1$
Carbon (C): $1s^2 2s^2 2p^2$
Nitrogen (N): $1s^2 2s^2 2p^3$
Neon (Ne): $1s^2 2s^2 2p^6$
Sodium (Na): $1s^2 2s^2 2p^6 3s^1$

Condensed Electron Configurations

To simplify, we often use the condensed electron configuration, where the core of inner electrons is represented by the nearest noble gas in brackets. For example:

Sodium (Na): $[Ne]3s^1$
Lithium (Li): $[He]2s^1$

Here, $[Ne]$ represents the configuration $1s^2 2s^2 2p^6$, and $[He]$ represents $1s^2$. This notation highlights the valence electrons, which are the outermost electrons involved in bonding.

Transition Metals

Transition elements begin with the filling of the $3d$ orbitals after the $4s$ orbital. For example:

Manganese (Mn): $[Ar]4s^2 3d^5$
Zinc (Zn): $[Ar]4s^2 3d^{10}$

Hund’s rule applies here as well—electrons spread out among the $d$ orbitals with parallel spins before pairing. This explains the stability of half-filled ($d^5$) and completely filled ($d^{10}$) subshells.

The Lanthanides and Actinides

The bottom rows of the periodic table correspond to the filling of the $4f$ and $5f$ orbitals. These are known as the lanthanide series (elements 57–71) and the actinide series (elements 89–103). Because the $4f$ and $5d$ orbitals have very similar energies, some lanthanides like cerium and praseodymium have mixed configurations:

Lanthanum (La): $[Xe]6s^2 5d^1$
Cerium (Ce): $[Xe]6s^2 5d^1 4f^1$
Praseodymium (Pr): $[Xe]6s^2 4f^3$

Actinides such as uranium ($Z=92$) and plutonium ($Z=94$) involve the filling of $5f$ orbitals. These elements are radioactive and less common in nature.

Example

Draw a simple orbital diagram for oxygen and state how many unpaired electrons it has.

Solution

Oxygen has 8 electrons. We place electrons in order of increasing energy and obey:

Pauli Exclusion Principle: max two electrons per orbital with opposite spins ($m_s=+\frac12$ and $m_s=-\frac12$).
Hund’s Rule: for degenerate orbitals (the three $2p$ orbitals), put one electron in each orbital with parallel spins before pairing.

Fill the orbitals.

$1s$ gets 2 electrons $\,\Rightarrow\, 1s^2$.
$2s$ gets 2 electrons $\,\Rightarrow\, 2s^2$.
We have 4 electrons left for the three $2p$ orbitals. Place one electron in each $2p$ orbital (three arrows up), then pair the fourth with one of them $\,\Rightarrow\, 2p^4$.

Result. Electron configuration: $1s^2\,2s^2\,2p^4$.

Unpaired electrons. Two of the $2p$ electrons remain unpaired, so oxygen has 2 unpaired electrons.

Key Takeaways

Electron configurations are built from the ground state up, filling orbitals in order of increasing energy.
The Pauli exclusion principle limits each orbital to two electrons with opposite spins.
Hund’s rule ensures electrons spread into separate orbitals before pairing up.
Condensed notation uses noble gases to simplify long configurations.
Transition metals and inner transition metals (lanthanides and actinides) involve $d$ and $f$ orbital filling.

Understanding electron configurations provides the foundation for predicting periodic trends, chemical reactivity, and bonding behavior — skills essential for success in AP / IB chemistry and beyond.
